Product Line-up Type Grade HM DXUŒ^ DXU-1002-L Feeder Cabinet MCU MC Custom Cabinet
G1 G2 G3
Product Line-up

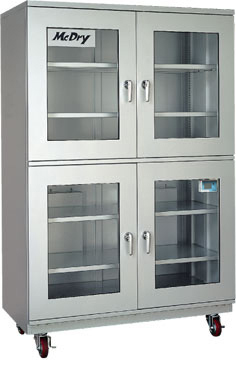

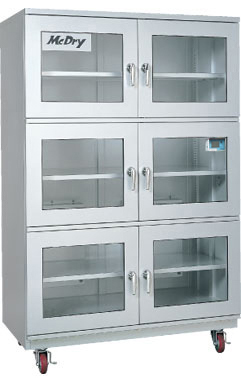

HM-1001B HM-1002B

œ Ultra-powerful rapid dehumidification drying unit
œ Digital humidity meter with large display panel
œ 1 Mƒ¶ ground terminal
œ Shelf load capacity: 100 kg
œ No central pillar allows full shelf width to be used

Custom orders
N2 gas socket can also be installed.

Humidity regulator Automatic dial regulator (RH)
External dimensions 1200W~700D~1850H (mm)
Internal dimensions 1150W~600D~1700H (mm)
Capacity Approx. 1200 Liters
Drying unit USF-7000~2
Material Steel with conductive coating (color: silver)
Doors (magnetic) 6-door with glass panels 4-door with glass panels
Weight 200kg 190kg
Power supply AC100Vi50/60Hzj
Power consumption 48 W/h (normal operation), 28 W/h (low-energy mode), max. 470 W
Accessories 5 shelves, locks, humidity meter, casters (with stopper), ground terminal
