HOME > Custom Cabinets and Option |
|
| DXU-1002-L Deeper Style Cabinet humidity 1%RH
|
Applications
(1) Feeder storage for IC packages with tape reels
(2) Feeder storage for LEDs with tape reels
(3) Feeder storage for chips with tape reels |
| Model |
DXU-1002-L |
| Humidity regulator |
Automatic dial regulator |
| External dimensions |
1200W×1000D×1850H(mm) |
| Internal dimensions |
1150W×900D×1700H(mm) |
| Capacity |
Approx. 1600 Liters |
| Drying unit |
US-5000F×2 |
| Material |
Steel with conductive coating (color:silver) |
| Doors (magnetic) |
4 doors with glass panels |
| Weight |
250 kg |
| Power supply |
AC 100V (50/60Hz) |
| Power consumption |
56 W/h (MAX 700W) |
| Accessories |
5 shelves, locks, humidity meter, casters(with stopper), ground teminal |
MB-1001・MB-301 Low-temperature, low-humidity baking Cabinet (IPC/JEDEC-standard)
|
Applications
Dehumidification and storage of IC packages and PCBs
Internal temperature: Room temperature (20℃) to 50℃
Internal humidity: 1-2%
This low-temperature, low-humidity baking cabinet can be used for low-humidity PCB
storage and for dehumidifying IC packages with tape reels that cannot be hot-baked. |
Features
● Ultra-powerful rapid drying unit
● Digital humidity meter with large display panel
● 1 MΩ ground terminal
● Shelf load capacity: 100 kg (MB-301: 50 kg)
● Complies with the IPC/JEDEC J-STD-033C standard
● Electrostatic discharge (ESD) complies with IEC 61340-5-1 |
| Model |
MB-1001 |
MB-301 |
| External dimensions |
1245W×770D×1985H(mm) |
525W×650D×1395H (mm) |
| Internal dimensions |
1150W×600D×1700H(mm) |
460W×600D×1070H (mm) |
| Capacity |
Approx. 1200 Liters |
Approx. 300 Liters |
| Drying unit |
US-5000F×2 |
US-4000 |
| Material |
Steel with conductive coating
(color:silver) |
Steel with conductive coating
(color: ivory) |
| Doors (magnetic) |
6-door with glass panels |
2-door with glass panels |
| Weight |
220 kg |
70 kg |
| Power supply |
AC 100V (50/60Hz) |
| Power consumption |
Max. 1400 W
(heater unit: 600 W) |
700 W (MAX) |
| Accessories |
5 shelves, locks, humidity meter, casters (with stopper), ground terminal |
5 shelves, locks, humidity meter, ground terminal |
| DXU-2900 Feeder Wagon Storage Cabinet humidity 1%RH
|
● Feeder wagons can be stored individually.
● Individual wagon storage prevents feeder connection errors and eliminates cycle time.
● Also features shelving, allowing trays and tape reels to be stored along with feeder wagons. |
We also manufacture storage cabinets with a height of 1250 mm or less. Contact us for details. |
| Model |
DXU-2900 |
| External dimensions |
1300W×1255D×1971H (mm) |
| Internal dimensions |
1140W×1000D×1800H (mm) |
| Capacity |
Approx. 2900 Liters |
| Drying unit |
USK-6000B×3 |
| Material |
Steel with conductive coating (color: silver) |
| Doors (magnetic) |
2-door with glass panels |
| Weight |
530 kg |
| Power supply |
AC 100V (50/60Hz) |
| Power consumption |
135W/h (MAX1410 W) |
| Accessories |
1 Shelf, lock, humidity meter |

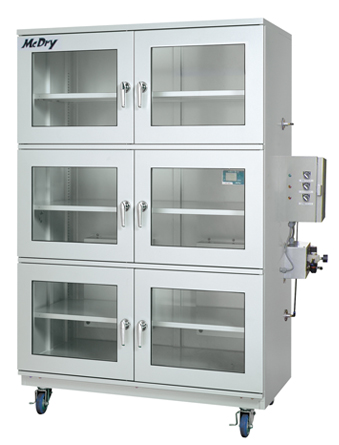

| DXU-1001N Cabinet with autmation N2 supply system
|
Applications
The DXU-1001A low-humidity storage cabinet features an N2 supply unit to prevent oxidation in stored products.
■ Timer-controlled to continuously deliver fixed amounts of N2 gas at set intervals.
■ Refer to the DXU-1001A for the dimensions. |
Features
■ Hepa Filter System, Class 100
■ Electrostatic Discharge : Conforms to IEC-61340-5-1(ESD) Standard for Handling
■ Installed with a powerful quick-dehumifying drying unit
■ Equipped with a large display digital RH unit
■ Shelves can hold 50kg |
| Model |
MCμ-401 |
| Humidity regulator |
Automatic dial regulator |
| External dimensions |
500W×630D×1530H (mm) |
| Internal dimensions |
480W×600D×1410H (mm) |
| Capacity |
Approx. 300 Liters |
| Drying unit |
US-4000 |
| Material |
Steel with conductive coating (color:ivory) |
| Doors (magnetic) |
3-door with glass panels |
| Weight |
70 kg |
| Power supply |
AC 100V (50/60Hz) |
| Power consumption |
48W／h（MAX260W） |
| Accessories |
5 shelves, locks, humidity meter, ground terminal |
| Item/type |

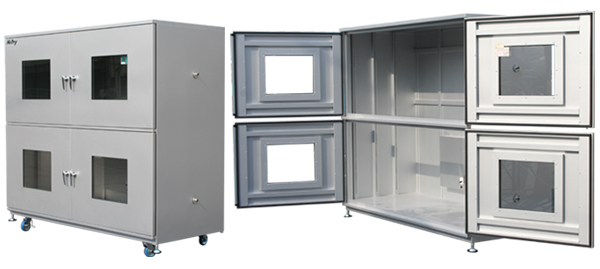

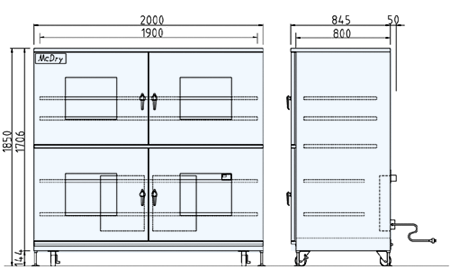

DXU-1004-800 |
| Humidity regulator |
Automatic dial regulator |
| External Dimensions |
2000W×845D×1850H(mm) |
| Internal Dimensions |
1900W×800D×1550H(mm) |
| Capacity |
Approx. 2400 Liters |
| Dry Unit |
US-5000F×2 |
| Material |
Steel with conductive coating (color:silver) |
| Doors (Magnetic) |
4-door with glass panels |
| Weight |
450Kg |
| Power supply |
AC100V（50/60Hz） |
| Power consumption |
56W/h（MAX700W） |
| Accessories Included |
5 shelves, locks, humidity meter, casters (with stopper),
ground terminal |

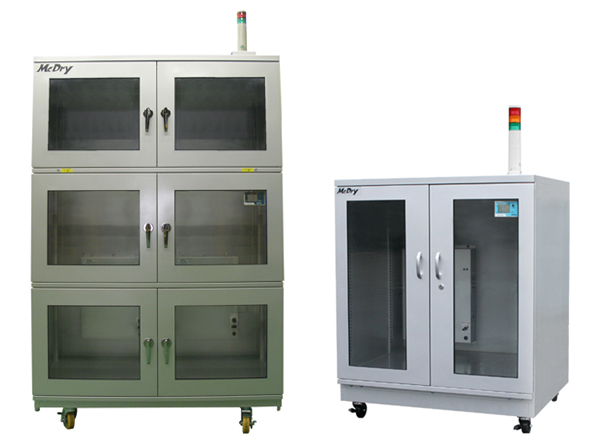

| Light Tower and Audible Alarm
|
The alarm light will flash and alarm will sound when the humidity level goes over the set parameters. |
 |

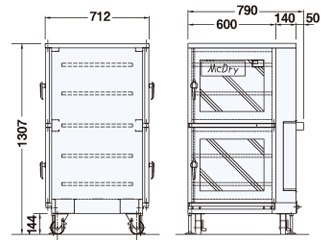

| DXU-401D Pass type Cabinet
|
| DXU-2200 Low dewpoint Cabinet(－40℃）
|
Features
| ■ |
Provides a low dew point between -30℃ and -40℃. |
| ■ |
Ideal where an ultra-low humidity environment is required, such as for lithium-ion battery-related components, electrode materials, etc. |
| ■ |
Can also be fitted with a Hepa filter. |
| ■ |
When used as a batch-format storage unit, uses less power than honeycomb rotor dehumidifying systems. |
| ■ |
Internal storage racks can be customized to meet the customer’s requirements. |
| ■ |
Stored product load capacity of approx.700 kg. |
| ■ |
Fixed anchors, so no concerns about the cabinet tipping over. |
|
| Item/type |
DXU-2200 |
| Humidity regulator |
Dew point -40℃ |
| External Dimensions |
1200W×1045D×2020H(mm) |
| Internal Dimensions |
1150W×870D×1650H(mm) |
| Capacity |
Approx. 2200 Liters |
| Dry Unit |
USK-6000×3 |
| Material |
Steel with conductive coating (color:silver) |
| Doors (Magnetic) |
2-door with glass panels |
| Weight |
400Kg |
| Power supply |
AC100V（50/60Hz） |
| Power consumption |
122W／h（MAX1450W） |
| Accessories Included |
locks, humidity meter, casters, anchor |
| |
