Product Line-up Type Grade HM DXUŒ^ DXU-1002-L Feeder Cabinet MCU MC Custom Cabinet
G1 G2 G3

Product Line-up
HOME

With 1 drying unit
With 2 drying unit





Features
œ Ultra-powerful rapid dehumidification drying unit
œ Digital humidity meter with large display panel
œ 1 Mƒ¶ ground terminal
œ Shelf load capacity: 100 kg
œ No central pillar allows full shelf width to be used.

Custom orders
N2 gas socket can also be installed.

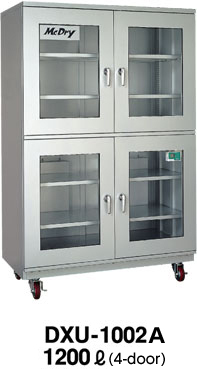

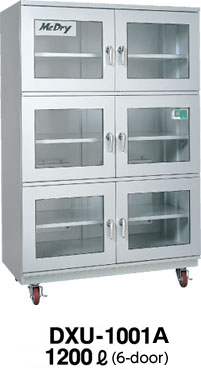

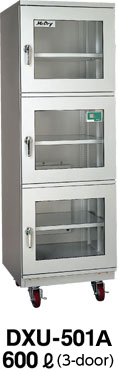

Model DXU-501A DXU-1001A DXU-1002A
Humidity regulator Automatic dial regulator
External dimensions W600~D700~H1850 W1200~D700~H1850
Internal dimensions W550~D600~H1610 W1150~D600~H1610
Capacity Approx.600 Liters Approx.1200 Liters
Drying unit US-5000F US-5000F~2
Material Steel with conductive coating (color: silver)
Doors (magnetic) 3-door with glass panels 6-door with glass panels 4-door with glass panels
Weight 110kg 200kg 180kg
Power supply AC100Vi50^60Hzj
Power consumption 28W^hiMAX350Wj 56W^hiMAX700Wj
Accessories 5 shelves, locks, humidity meter, casters (with stopper), gound terminal
