Product Line-up Type Grade HM DXU^ DXU-1002-L Feeder Cabinet MCU MC Custom Cabinet
G1 G2 G3
Product Line-up
Features 300 mm more depth than normal cabinets, so is capable of holding large stored items (max. 900 mm).

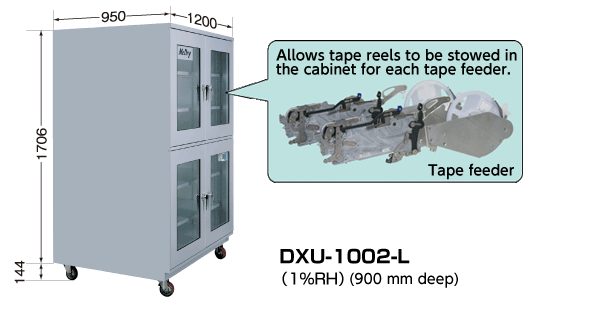

Can also hold feeders with tape reels. Allows tape reels to be stowed in the cabinet for each feeder.

We also manufacture cabinets with greater depth than the dimension shown at left. Contact us for details.

Model DXU-1002-L
Humidity regulator Automatic dial regulator
External dimensions W1200~D1000~H1850
Internal dimensions W1150~D900~H1610
Capacity 1600 Liters
Drying unit US-5000F~2
Material Steel with conductive coating (color: silver)
Doors (magnetic) 4-door with glass panels
Weight 250kg
Power supply AC100Vi50^60Hzj
Power consumption 56W^hiMAX700Wj
Accessories 5 shelves, locks, humidity meter, casters (with stopper), ground terminal
