DXU-1002-1000



Return to the Feeder Storage Cabinet list
フィーダー保管庫

Features
■ The 2-door system allows the cabinet front to be completely opened up so that the feeder rack installation can be adjusted up or down to match the feeder dimensions.
■ The sliding system makes it easy to load and remove feeders.
■ A sliding rail-type reel rack can be installed in the upper part.

Model DXU-1002-1000

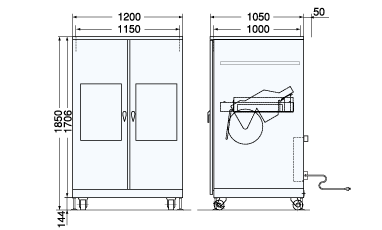

External dimensions W1200×D1045×H1850 (mm)
Internal dimensions W1150×1000×H1552 (mm)
Capacity Approx.2200 Liters
Drying unit US-5000F×2
Material Steel with conductive coating (color: silver)
Doors (magnetic) 2-door with glass panels
Weight 350kg
Power supply AC100V(50/60Hz)
Power consumption 56W/h(MAX700W)
Accessories One shelves, locks, humidity meter, caster(with stopper), ground terminal
