DXU-2400SIF



Return to the Feeder Storage Cabinet list
Feeder Storage Cabinet

Features
¡ Capable of storing tape reel-equipped chip feeders.
¡ Uses RFID to simplify traceability (floor life) management for IC packages.
¡ Feeders are removed from the storage unit rack where the picking lamp is lit, ensuring that feeder removal is reliable and error-free.

Model DXU-2400SIF

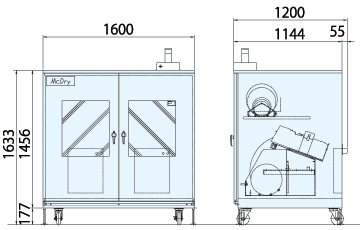

External dimensions W1600~D1200~H1633 (mm)
Internal dimensions W1570~D1090~H1358 (mm)
Capacity Approx. 2400 Liters
Drying unit USK-6000~2
Material Steel with conductive coating (color: silver)
Doors (magnetic) 2-door with glass panels
Weight Approx. 500kg
Power supply AC100V
Power consumption 47W^hiMAX890Wj
RFID receiver Reader-writer modules(50)
Accessories 1 Shelf, Locks, humidity meter, casters (with stopper), ground terminal
