Feeder Storage Cabinet

Allows different brands of feeders to be stored in the same cabinet.
Suitable for storing products such as the Panasonic CM series and Fuji KDE series.
The feeder rack runs on sliding rails, making it easy to load and remove feeders and tapes.

Model DXU-1002-LF

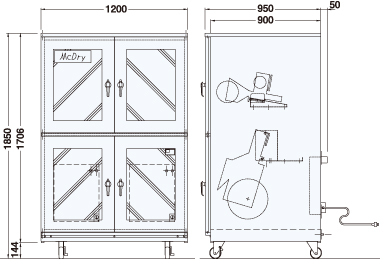

External dimensions W1200~D1000~H1850 (mm)
Internal dimensions

W1150~D900~H1610 (mm)

Capacity Approx.1600 Liters
Drying unit US-5000F~2
Material Steel with conductive coating (color: silver)
Doors (magnetic) 4-door with glass panels
Weight 250kg
Power supply AC100Vi50^60Hzj
Power consumption 56W^hiMAX700Wj
Accessories Locks, humidity meter, casters (with stopper), gound terminal
